Sharman Mechanical works
DELHI, delhi
VERTICAL TUBULARMachine 50kg for cones or hanks.The dyeing machine is used for dyeing yarn at high temperature and high pressure. Our expert technic .. Read More
345000 325000
Approx Price: 345000 /Hot Air Dryer
Minimum Order Quantity: 1 Hot Air Dryer
Condition: New
Product Type: Other
Material Capabilities: Yarn
Spare Part Material: steel
Hot Air Dryer is especially prepared for drying nearly all kinds types of natural Yarns such as Polyesters, Cottons, Viscose, Acrylic, Silks, Wool, Hanks and Cones.
Construction: Exterior has completed of completely protected stainless steel square pipes and packed with mild steel sheets with powder coated paint finishes. We have huge experience of more than 15 years in manufacturing and supplying laboratory hot air oven machine and dryer products.
Insulation: Dryer cabinets are completely protected with 50mm of thick glass wool for avoiding Heat Losses / Heat Leakages.
Door:Front doors open and insulating with 50mm thick glass wool and doors with silicone rubber gaskets for avoiding any heat damage.
Lock:Single door cabinets, coil and roller category handle has provided double door cabinets are container type rod locking assembly is providing for effective and protected seals.
Ventilation:Actual effective electrical De-humidifier activated with digital timers is providing.
Heat:Various types of heating devices are offering as per the requirement and suggestion like electric heating, heating by thermic fluid with fin types of heat exchangers and many more.
Technical Data :
1. Maximum design temperature 140C
2. Heating gradient 25C - 130C approx. at 4C/min. (Dry saturated steam pressure at 7 bar), approx. at 3C/min with electric heaters

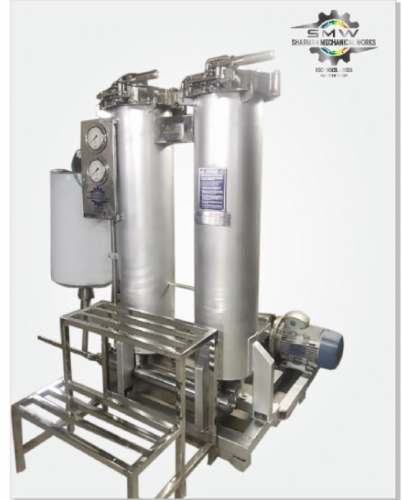

VERTICAL TUBULARMachine 50kg for cones or hanks.The dyeing machine is used for dyeing yarn at high temperature and high pressure. Our expert technicians ensure that it is manufactured using fine grade material, procured from the most authentic vendors of the industry. he body of the machine is fabricated using high grade stainless steel in order to assure durability and resistance to corrosion. We fabricate these machines using premium quality raw material that is procured from the most credible vendors of the industry.
Main Features:
1. Capacity range from 1 kg to 500 kg
2. Very low liquor ratio from 1:3 to 1:5
3. Loading up to 30% possible
4. Savings of water, chemical, heat &
electrical energy
5. Coil type heat exchanger for efficient and
fast heat transfer
6. Design ensures complete drain of liquor
7. Pneumatic cylinder lift door with Heavy Clamp
locking system
8. Hydraulic safety locking for door
9. Large Saving of capital and operational cost
Application:
1. Yarn Packages
2. Zipper Tapes
3. Small width Fabrics
4. Loose fibres
Advantages:
1. Compact arrangement of SMW turbo pump, heat
exchanger and piping is the main key to floor space saving
2. Ultra Low MLR of 1:3, consumes less dyestuff,
chemicals, steam, water & produces less effluent discharge, hence it's ECO
friendly & reduces the Production Cost
3. Inverter driven turbo pump for variable flow
control; saves upto 40% power consumption hence more Energy Efficient
4. HT drain at 130C for oligomers elimination
during polyester dyeing process
5. Variable loading with dummies maintains
constant MLR & Flow Rate
6. Excellent dyeing result and levelness,
reduces yarn loss
7. Water level, pressure, distinctive
temperature multiple safety interlock, ensure operational safety
