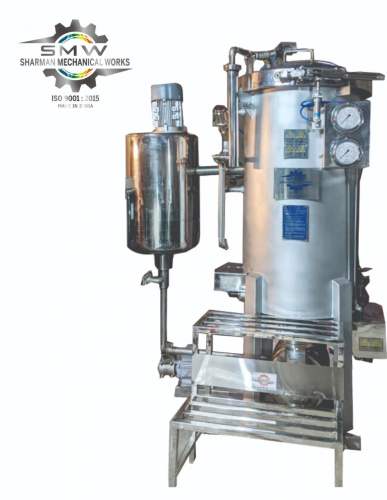

Vertical Yarn Cone & Hanks Dyeing Machine

Share Product on Social Network

Vertical Yarn Cone & Hanks Dyeing Machine

390000 400000/1 Ask Latest Price

Availability : In Stock

Min Order (MOQ) : 1

HTHP vertical dyeing machines are faster growing in the markets. We are manufacturing high temperature vertical yarn dyeing machine with latest quality and trending designed, best selling machine on textile company with highly experienced in yarn dyeing machine. Sharman...

Related products

fully-automatic-yarn-dyeing-machines

390000

Get Quote
winch-dyeing-machine

90000

Get Quote
plc-based-u-type-rapid-dyeing-machine-

1000000

Get Quote
long-tube-with-double-tube-jet-dyeing-machine

3500000

Get Quote

Nature of Business

manufacturer, supplier

Total Number of Employees

11 to 25 People

Year of Establishment

1967

Legal Status of Firm

Sole Proprietorship (Individual)

Annual Turnover

Rs. 25 Lakh - 50 Lakh

We Sharman Mechanical works are manufacturer of Horizontal Cone Tape Zippier Dyeing Machine,Yarn Vertical Tube Dyeing Machine etc...

Product Specification

HTHP vertical dyeing machines are faster growing in the markets. We are manufacturing high temperature vertical yarn dyeing machine with latest quality and trending designed, best selling machine on textile company with highly experienced in yarn dyeing machine. Sharman Mechanical Works are manufacturers, suppliers and exporters of vertical yarn dyeing machine with long lasting features and international standards. HTHP vertical yarn dyeing machines have been creating for Fabric and yarn dyeing such as Ribbon, Top, Hank, and Zippers. Our machine is dyeing 10 to 1500kg at a one time.

Features:

1. All machine part approaching into deal with the dye is finished of AISI SS 316L, extremely oxidisation resistance
2. Dual stage turbo pumps for liquor movement (In & Out) with inverter drive for varying speeds
3. MLR of 1:6 (Fully Submerged) 1:5 (Air Pad Systems)
4. Ait pad systems to inserts air manually into the machines to design fixed density and to minimize the ratio
5. Addition tank with injection pump colour for tired the dyeing machine
6. Heat exchangers inbuilt to machine having heat minimize
7. Flexible and variable loading speed
8. Checking and Sampling dyeing machine while operating
9. Human / Machines Security Connects Features:


1. All machine part approaching into deal with the dye is finished of AISI SS 316L, extremely oxidisation resistance
2. Dual stage turbo pumps for liquor movement (In & Out) with inverter drive for varying speeds
3. MLR of 1:6 (Fully Submerged) 1:5 (Air Pad Systems)
4. Ait pad systems to inserts air manually into the machines to design fixed density and to minimize the ratio
5. Addition tank with injection pump colour for tired the dyeing machine
6. Heat exchangers inbuilt to machine having heat minimize
7. Flexible and variable loading speed
8. Checking and Sampling dyeing machine while operating
9. Human / Machines Security Connects

Optional Feature

1. Several fills
2. Various drains
3. Several heating systems such as electric heater, steams & gas/diesel flame
4. Stock tank with fully capacity & mixing agitator with heating transfer pumps
5. ph meters
6. Hydro extractions systems


Technical Data:

1. Maximum design pressure 6 bar
2. Maximum design temperature 160C
3. Heating gradient 25C - 130C approx. at 5C/min. (Dry saturated steam pressure at 7 bar)
4. Cooling gradient 130C - 85C approx. at 3.5C/min. (Cold water of 25C at 3 bar)
