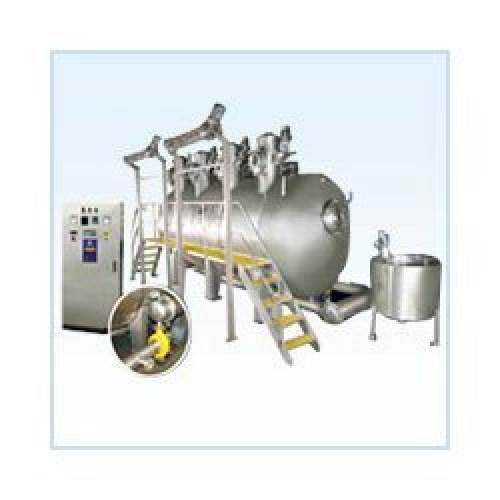

Soft Flow Fabric Dyeing Machine

The ColorSoft range of dyeing machines offers problem-free operations under the most grueling conditions. The special in-built features make these machines ideally suited for demanding industrial conditions they are economically in their use of water, steam, chemicals, dyestuff, and process times.

Technical Features:

• Compact design, body manufactured out of heavy duty AISI 316 Stainless steel for all parts in contact.
• Heavy duty cast stainless steel circulation pump (low pressure high discharge) with mechanical seal.
• PTFE sheet mounted inside to prevent piling and frictional damage.
• Frequently controlled AC drive for accurate speed variation of Lifter Reel.
• Magnetic level indicator.
• High efficiency heat exchanger to ensure quick heating/cooling.
• High volume lint filter, particularly necessary in cotton and heavy GSM fabrics, seam tracing device for unloading of the fabric, for sampling process and indication of cycle time (option).
• Low liquor ratio (based on dry fabric weight).

• Low liquor ratio of 1:6
• Very low power consumption
• Low weight loss about @ 3.5%

• Maximum Working Temp 135C
• Maximum Working Pressure 3.2 Bar.
• Heating Rate : Approx. 4C/Min upto 90C & 3C/Min upto 135C at Steam Pressure of 6 Bar.
• Cooling Rate : Approx. 4C/Min at Water Pressure of 4 Bar and 15C.
