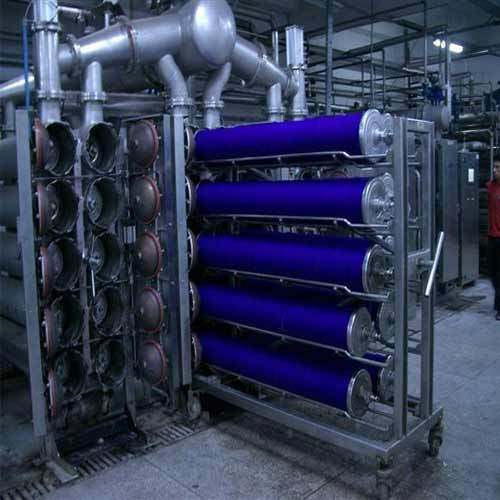

Horizontal Yarn Dyeing Machine

900000 850000/Piece Ask Latest Price -6% Off

Product Specification :

Automatic Grade: Automatic

Condition: New

We are engaged in offering our clients, a wide range of Horizontal Yarn Dyeing Machinethat is used for handling all kinds of yarn of natural and synthetic fibers or blends wound on...

Weavetex Engineers Pvt Ltd

mumbai, maharashtra

Related products from this supplier

tubular-yarn-dyeing-machine

850000

Get Quote

Nature of Business

exporter, manufacturer, supplier

We Weavetex Engineers Pvt Ltd are prominent exporter,manufacturer and supplier of textile machinery,yarn dyeing machinery.Our range of products is designed in compliance with international quality standards and thus, is highly demanded by our clients

Product Specification

Automatic Grade: Automatic

Condition: New

We are engaged in offering our clients, a wide range of Horizontal Yarn Dyeing Machinethat is used for handling all kinds of yarn of natural and synthetic fibers or blends wound on packages. These are designed in compliance with international quality standards and are manufactured using quality material. The machines can reach a minimum liquor ratio of 1:3 with some yarns even if it is fully flooded. Our product range is available in small and large capacity with the same accessories and with automatic or dummy valves for load reduction and can reduce capacity up-to 30% of the full load. Our clients can dye weighing from 10 Kgs up to 2500 Kgs.


Features of our product range are as follows:


  • Lowest Liquor Ratio of 1 : 3 in fully Flooded. ( MLR 1:3)
  • Capacity of the Machine start from 10 Kg to 600 Kg
  • Due to Horizontal Design No Hoist/No Crane/No Platform/No Foundation Required
  • Machine can be installed in normal Factory Shed Height of 10 feet 12 Feet.
  • Main Keir and all wet part are made of stainless steel
  • Main pump is controlled by advance inverter
  • Multi-Stage Turbo Main Pump
  • Low Liquor ratio saves Steam, Chemical, Effluent and mainly water
  • Reliable Door locking Device Electro-Mechanical
  • Lid safety interlocking device
  • PLC with Touch Screen for 300 programs with multiple steps each programs.


Scope of supply:

  • 1 No. Main Vessel (Autoclave)
  • 1 No. liquor circulating (Main) Pump with electric motor,
  • 1 No. injection pump with motor
  • 1 No. fully wired self-standing electric power cum control panel.
  • 1 No. Expansion/Color addition Tank
  • 1 No. Temperature sensor P. T. 100.
  • 2 Nos. pressure gauges for indicating differential pressure at suction and discharge
  • Set of Valves for controlling auto/manual process system
  • 1 set of carriers
  • PLC with Touch Screen for automation

    Optional:

    • Extra set of carrier for Yarn Package in Dye-spring/Plastic Bobbin/Basket Carrier for Fiber or Muff
    • Stock Tank for cotton or Viscose Yarn
    • Parking for carriers
    • Press for Dye-Spring
    • Chemical Dosing tank
    • Communication with Color Kitchen
    • Robotization on complete Weavetex Dyeing Machines
