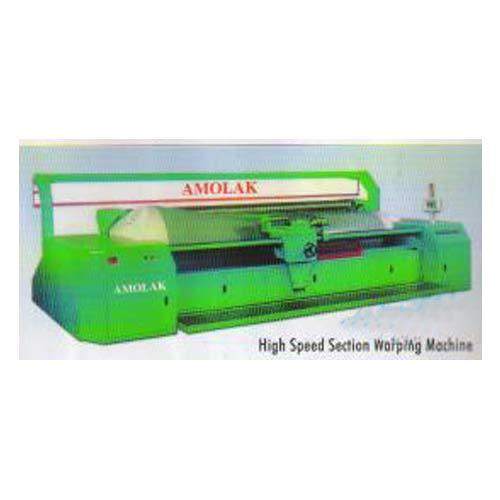

High Speed Sectional Warping Machine

Ask Latest Price

Product Specification :

Automatic Grade: Automatic

Condition: New

Salient FeaturesWide range of warp widths and beam flangewidths 2200-4500 mm and flange dia 800-1250mm.Fixed cone. Metallic drum, dynamically balanced 2.5 mtrs. circumference for 1...

Related products from this supplier

Nature of Business

manufacturer, supplier

We are Amolak Singh Jacquard Factory Our firm is India first firm to manufacturer totally indigenous jacquard machine, fusing machine etc.Panipat, Haryana.india

Product Specification

Automatic Grade: Automatic

Condition: New

Salient Features

  • Wide range of warp widths and beam flange
  • widths 2200-4500 mm and flange dia 800-1250mm.
  • Fixed cone. Metallic drum, dynamically balanced 2.5 mtrs. circumference for 1000 mm
  • S3.0 mtrs. circumference for 1250 mm beam flange.
  • AC variable speed: Two separate motors for warping and beaming.
  • Hydraulic disc brakes on both sides.
  • Stopping of drum at exact position at end of section. Auto stop at point of lease cord.
  • Auto braking in case of power failure.
  • Section width standard 300 mm. wider m special cases.
  • Programmab'e Logic Controller (PLC) for:
  • Accurate length of warps, auto home position and re-positioning of warp table, constant
  • linear speed in warping and beaming, auto stopping of lost warp end at beaming stage, yam
  • break memory and data stored no. of sets of warptng, TFT Touch screen graphic display.
  • Wide range of table traverses out of S00 steps gear ratios.

Separate Beaming Section


  • Safety device io avoid accident.
  • Modem connectivity - Machine can be linked by modem & Telephone line with suppliers for Instant diagnostic solution.
  • Power supp(y440V 5%. SOHz. 3 phase.

Optional Attcahments


Beam pressing-pneumabc offered with separate beaming section.
liquid waxing device.
