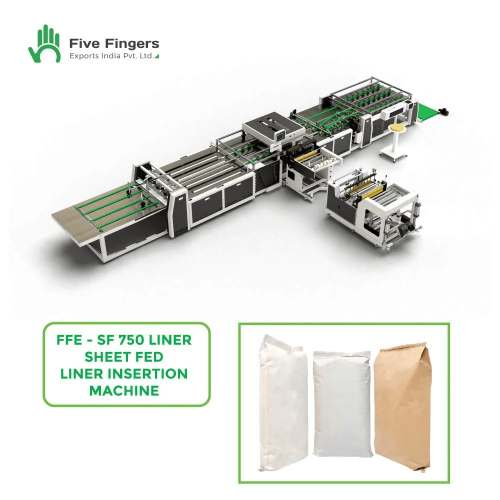

Sheet Fed Liner Insertion Machine | Five Fingers Exports

Five Fingers Exports is the leading manufacturer of the fully automatic Sheet Fed Liner Insertion Machine in India. Our machine offers a user-friendly solution to liner insertion, improving production speed and overall efficiency. With easy operation and flexible adjustments, it helps reduce downtime and manual work. Designed for high-quality results, it ensures smoother operations and better performance. Choose us for an efficient, time-saving liner insertion solution.

TECHNICAL PARAMETERS

1. Tuber Length600 1200 mm
2. Tuber Width350 -700 mm
3. Max Diameter of Liner Roll500 mm
4. Max. Input Tuber Sheet500 nos
5. Film Width+/- 20 mm [HM or LD Liner]
6. Film Thickness30 80 Microns
7. Stitch Range7 12 mm
8. Speed30 35 Pcs/Min
9. Power30 KW
10. Machine Dimensions (L*W*H)13800 x 5200 x 1800mm
11. Sleeve Width55 60 mmSleeve TypeWithout Adhesive [Before Stitching] With Adhesive [After Stitching]
