Amolak Singh Jacquard Factory
panipat, haryana
We hold expertise in offering a wide range of Weaving Machines, that are manufactured using advanced technology. Besides, manufacturing myriad dupatta .. Read More
0
Automatic Grade: Automatic
Condition: New
Type: Power Jacquard Machine

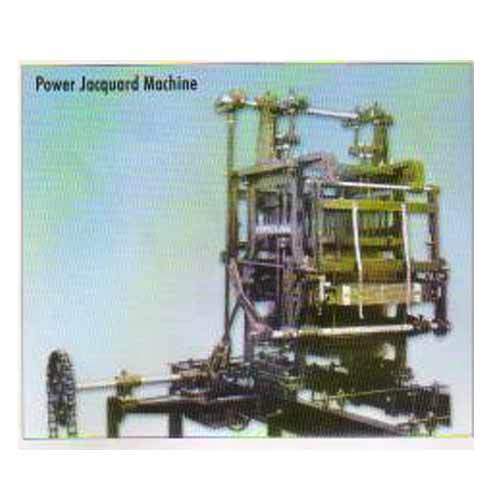

Power Jacquard Machine-
Specification :
Pitch : Corse Pitch
Operating Cylinder : Double
Lift : Double
Size : 200 Hooks to 2400 Hooks
Drive : Steel Roller chain or M. Casting Chain
Framing : Quality Cast Iron Side Frames
Cylinder : Special Alluminium Alloy nd C.I.
Spring Box : wood and plastic
Needle Box : Special Alluminium Alloy
Hooks Needle : Special Carbon Steel Wire
Use : Recommended for Designing curtain, bed sheet, blanket, furnishing fabrics, sarees and export quality cotton mat & Rugs etc.
0
Automatic Grade: Automatic
Condition: New
Max Speed For Stitch: 0-500 rpm
specification-
Pick : Over & Under Pick,
Reed Space : 44" To 130"
Reed : Loose Reed or Fast Reed
Type Of Hand : Right and Left
Drive : 3 Phase Electric Motor
Sley : Made from Malaysia saal wood with cast iron steel plate 22" to 26"
Shuttle : 1*1, 1*2,1*4,2*2,2*4,4*4,
Framing : Quality Cast Iron Side Frame
Warp Roller : One Use : Recommended for weaving, bed sheet, curtain, blanket, sarees, furnishing fabrics, export quality mats and industrial wrapper cloth etc
Speed : 100 to 150 : R.P.M
