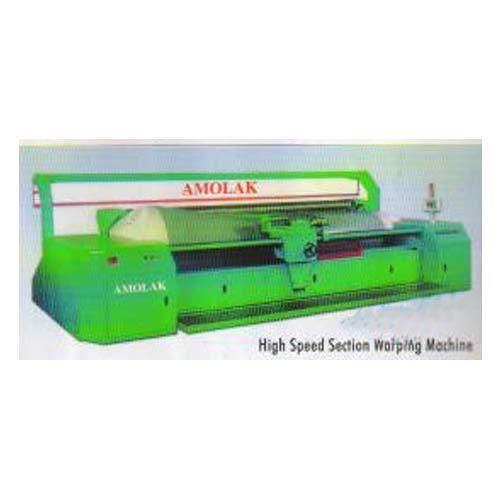

Warping Machine

Product Specification :

Automatic Grade: Automatic

Condition: New

Product Description :

Salient Features

• Wide range of warp widths and beam flange

• widths 2200-4500 mm and flange dia 800-1250mm.
• Fixed cone. Metallic drum, dynamically balanced 2.5 mtrs. circumference for 1000 mm
• S3.0 mtrs. circumference for 1250 mm beam flange.
• AC variable speed: Two separate motors for warping and beaming.
• Hydraulic disc brakes on both sides.
• Stopping of drum at exact position at end of section. Auto stop at point of lease cord.
• Auto braking in case of power failure.
• Section width standard 300 mm. wider m special cases.
• Programmab'e Logic Controller (PLC) for:
• Accurate length of warps, auto home position and re-positioning of warp table, constant
• linear speed in warping and beaming, auto stopping of lost warp end at beaming stage, yam
• break memory and data stored no. of sets of warptng, TFT Touch screen graphic display.
• Wide range of table traverses out of S00 steps gear ratios.

• Safety device io avoid accident.
• Modem connectivity - Machine can be linked by modem & Telephone line with suppliers for Instant diagnostic solution.
• Power supp(y440V 5%. SOHz. 3 phase.

Product Specification :

Automatic Grade: Automatic

Condition: New

Product Description :

Salient Features

• minimum barrel length 1600 mm & 2200 mm for respective models of above mentioned
• widths 2200- 2800 mm and range dia. 800-1000 mm.
• fixed tone. Metallic drum, dynamically balanced s3. 0 mtrs. Circumference for 1000 mm flange beam
• hydraulic band brakes on both sides.
• auto braking measure of power failure.
• ac variable speed; two motors for weaving and beaming
• section width standard 50-300 mm. Wider at extra cost.
• "flat" reed with lateral and fine angular adjustments.
• central position of warping table and creel maintained. (manual operations)
• beam doffing & donning.
• automatic stopping after predetermined section length.
• precise beam length indicated after beaming operation.
• electric safety device to avoid accident
• beaming secoon with machine (in case of working width upto 2800 mm & flange da 1000 mm)
• power supply 440v- 5%, 50hz. 3 phase.
• optional attachments
• liquid waxing device.
• electronic static eliminator on traverse table.
• oiling device.
• section tension control unit tor yam sheet, between creel and lease reed.
